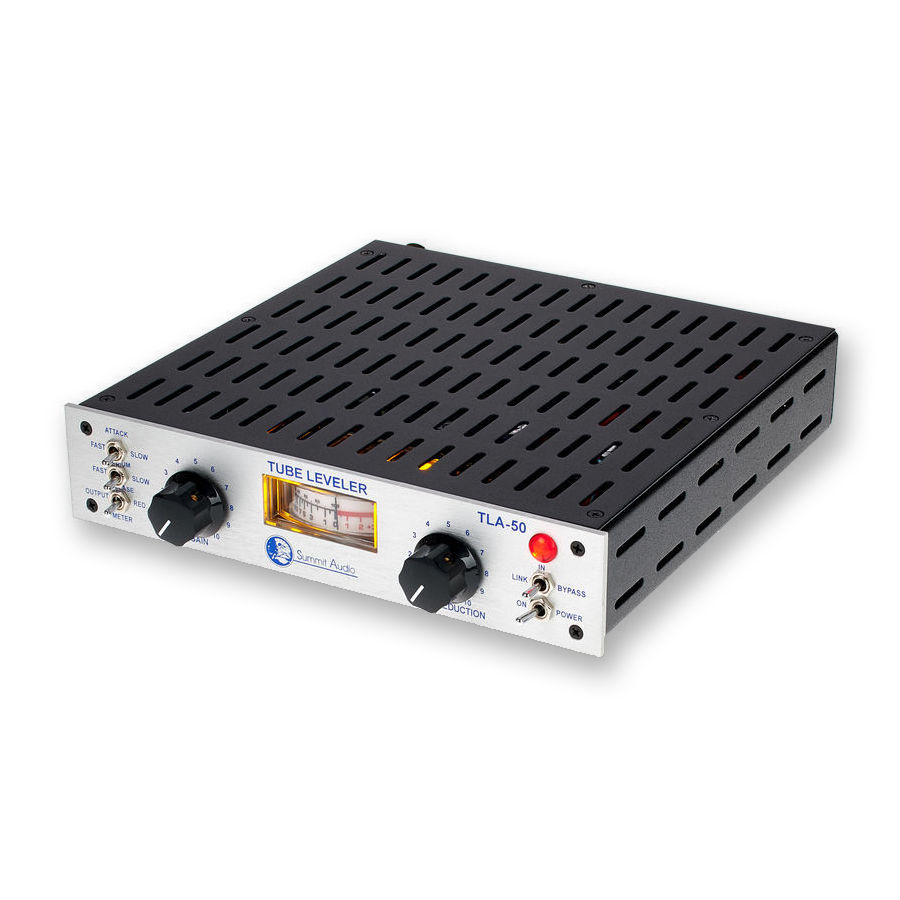

Summit TLA-50 Tube Leveling Amplifier

Technical Specifications

Size and Weight

Height: 1.75 inches (4.44 cm)

Width: 8.5 inches (21.59 cm)

Depth: 8.5 inches (21.59 cm)

Weight: 5 pounds (2.77 kg)

Power Configuration

• Internal AC Supply
• 20 watts, 115, 50 or 60 Hz (USA model)
• Fuse size .5 amp, slo-blo for 100/115 V
• Fuse size .25 amp, slo-blo at 230 V

Input Impedendance

• Mic: 1.5K ohms
• Hi-Z: 10K-1.75M ohms
• Output impedance (XLR): 150 ohms

Connections

• Inputs: +4 dB female XLR and -10dB 1/4"
• Outputs: +4 dB male XLR and 1/4" -10 dB balanced
• Insert: 1/4" TRS balanced line level output
• Stereo Link: 1/4" mono Jack
• Side Chain: 1/4 stereo jack for Tip/Ring signal processing

Max input level

• Max input level: +20 dBu
• Max output level (XLR): +25dBu
• Max gain: 24dBu

Operating Measurements

• Frequency response: 20Hz-20kHz +/-1dB w/6dB compression
• Signal to noise ratio: 120dB
• THD + Noise: 0.05% +4dB, 3dB compression
• Vacuum tubes: 12AX7A

Warranty

• 3 year limited warranty.
